Smart Light

The HomeGenie Smart Light is a firmware designed to drive advanced, highly responsive 1D/2D addressable LED systems. Supporting both linear strips and high-density matrices up to 64x64 (4096 pixels) in any physical configuration, it operates natively as a standalone ambient light, a music-reactive visualizer, or a programmable pixel-art display.

Product Features

The Concept: Snap-Together Modules

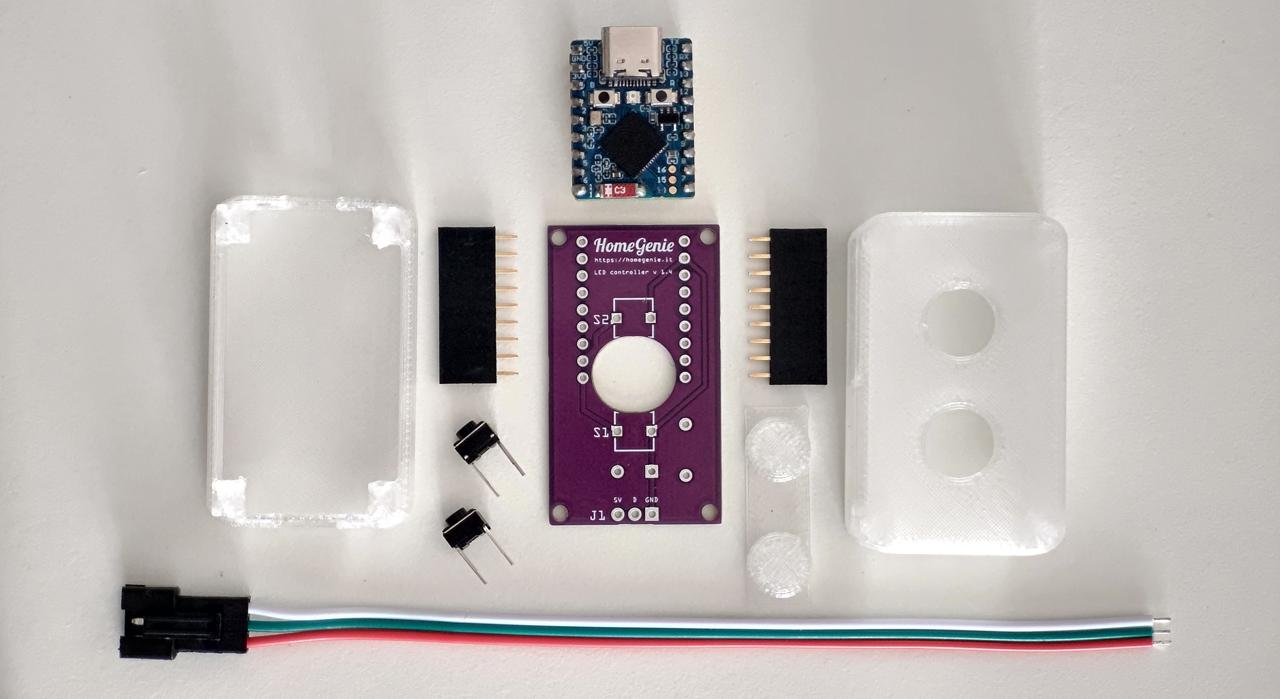

The Smart Light Controller relies on compact, modular breakout boards. Each component handles a dedicated role and plugs directly into the custom PCB shield using standard pin headers with zero soldering required during final assembly:

1. Main Microcontroller Board (ESP32-C3 / S3 Zero)

ESP32-S3-Zero / ESP32-C3-Zero mini development board
The processing brain of the smart light. It runs the HomeGenie Mini firmware, manages high-speed 100Hz animation rendering, Wi-Fi connectivity, local automations, and scheduling. It plugs face-down into the controller shield, directing its onboard RGB indicator toward the base of the translucent enclosure.
Common models / Search keywords: Waveshare ESP32-C3-Zero / ESP32-S3-Zero (with pre-soldered pin headers)

2. WS2812B 1-Pixel RGB LED Module (Optional)

WS2812B RGB LED Pixel Module
An optional auxiliary RGB indicator that plugs directly into the controller shield. It illuminates the 3D-printed enclosure from within, providing visual status feedback (such as Wi-Fi pairing and animation mirroring) or functioning as an independent, secondary ambient light source.
Common models / Search keywords: WS2812B 5050 RGB LED 1-Bit module breakout board, NeoPixel 1-LED PCB module



These components are standard, widely produced electronic modules that cost very little. They are readily available on major marketplaces (such as AliExpress, Amazon, or eBay) and can be snapped together in less than 5 minutes, making it an accessible, rewarding DIY build for anyone.

Assembling The Controller

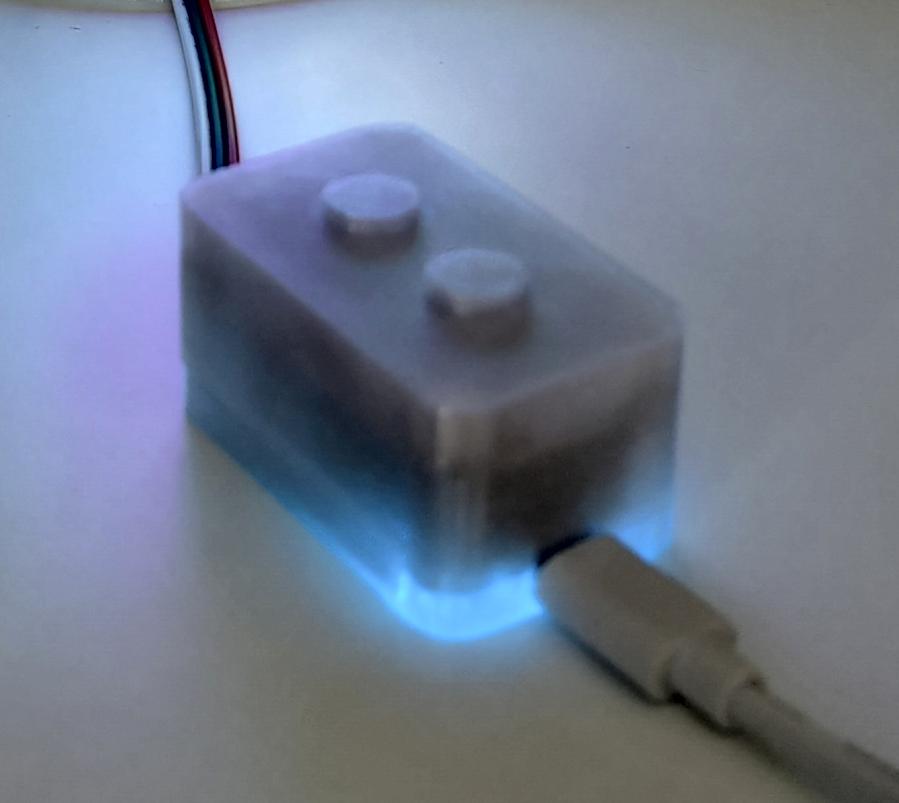

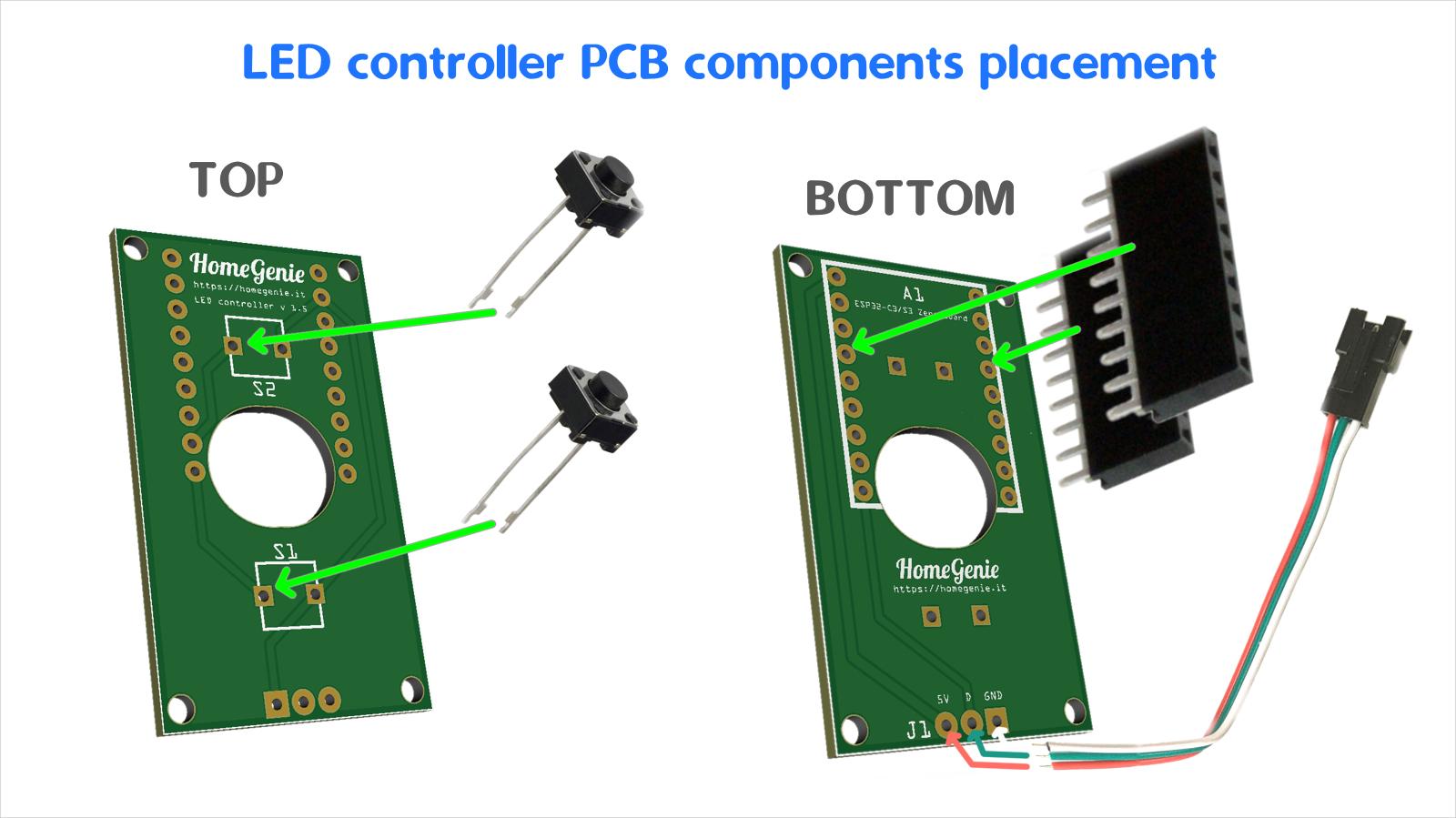

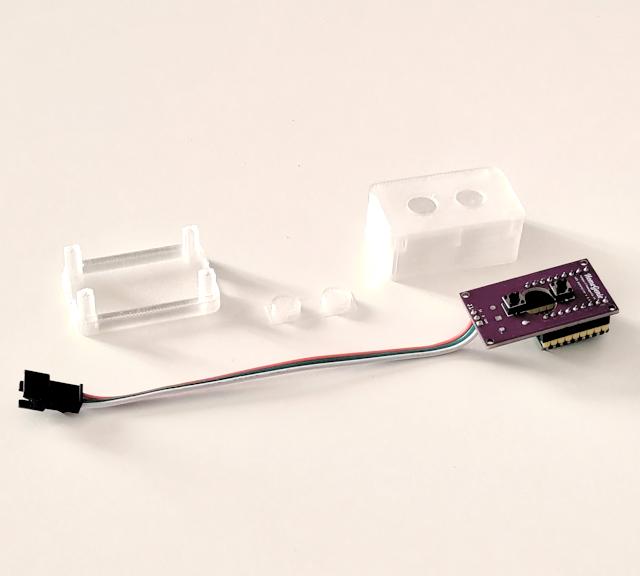

The HomeGenie Smart Light controller board features dedicated sockets to plug in the ESP32 module and the optional RGB LED module, along with a 10 cm cable with a JST connector for connecting an LED strip or matrix.

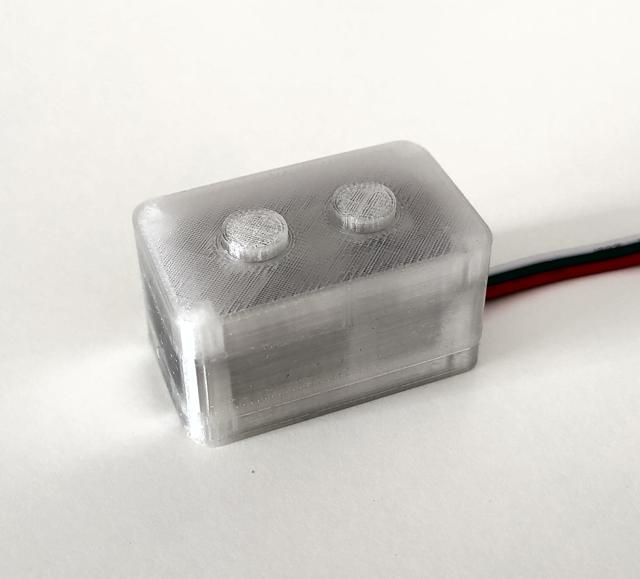

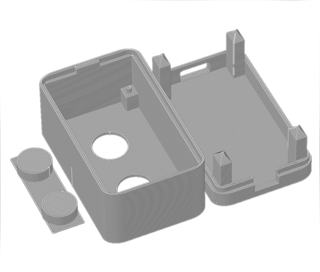

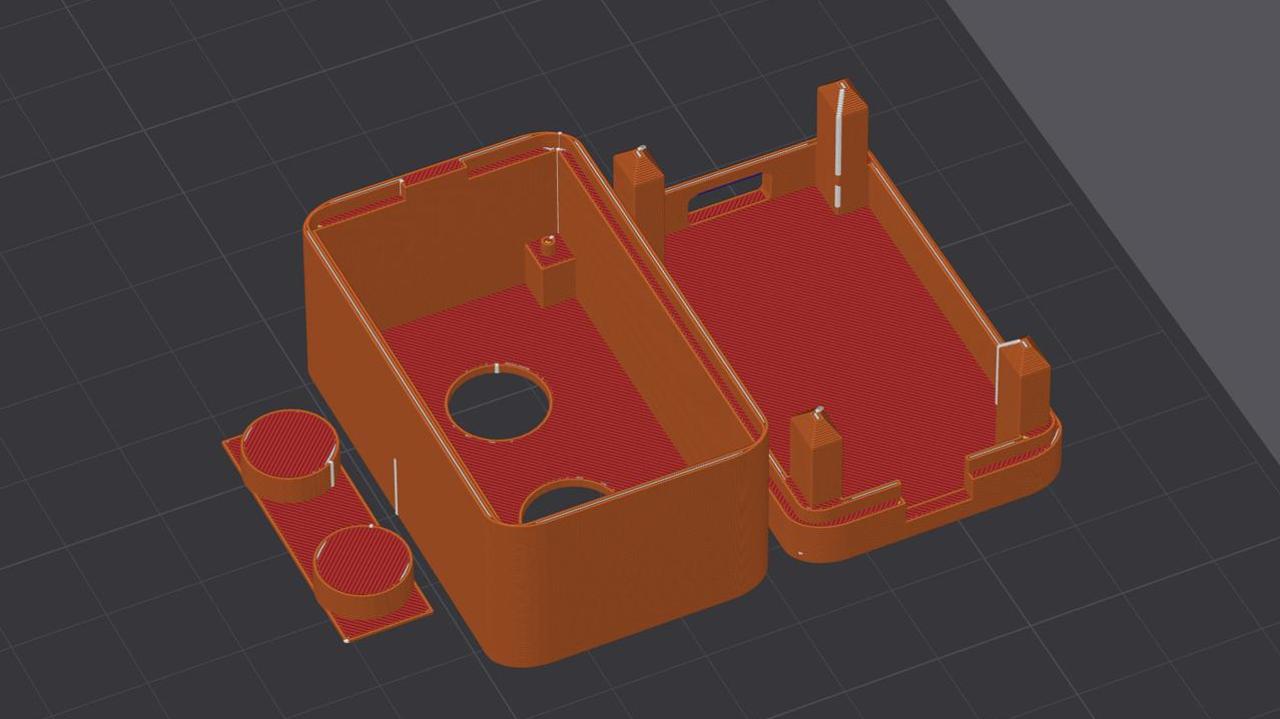

Assembly is quick and simple: just plug in the two modules and place the board into its translucent 3D-printed enclosure, which uses a completely screwless snap-fit design for easy assembly.

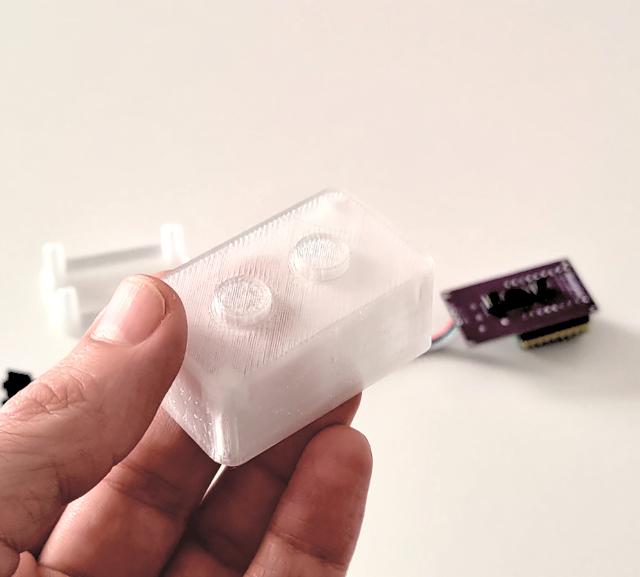

Insert the buttons into the enclosure top


Open media

Place the assembled board into the enclosure top


Open media

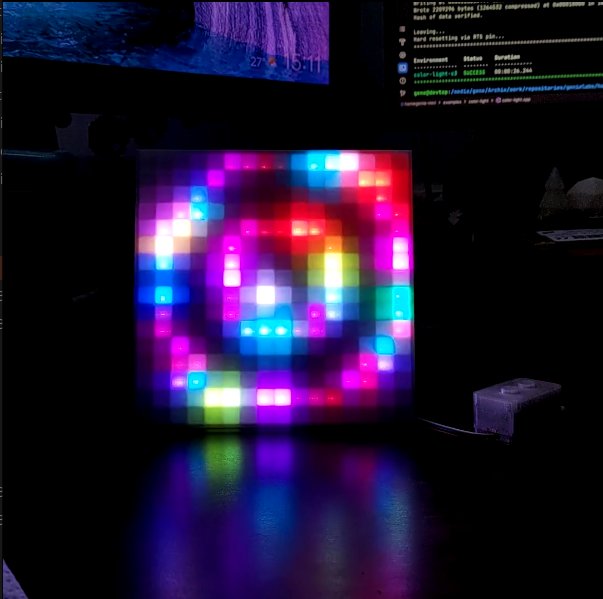

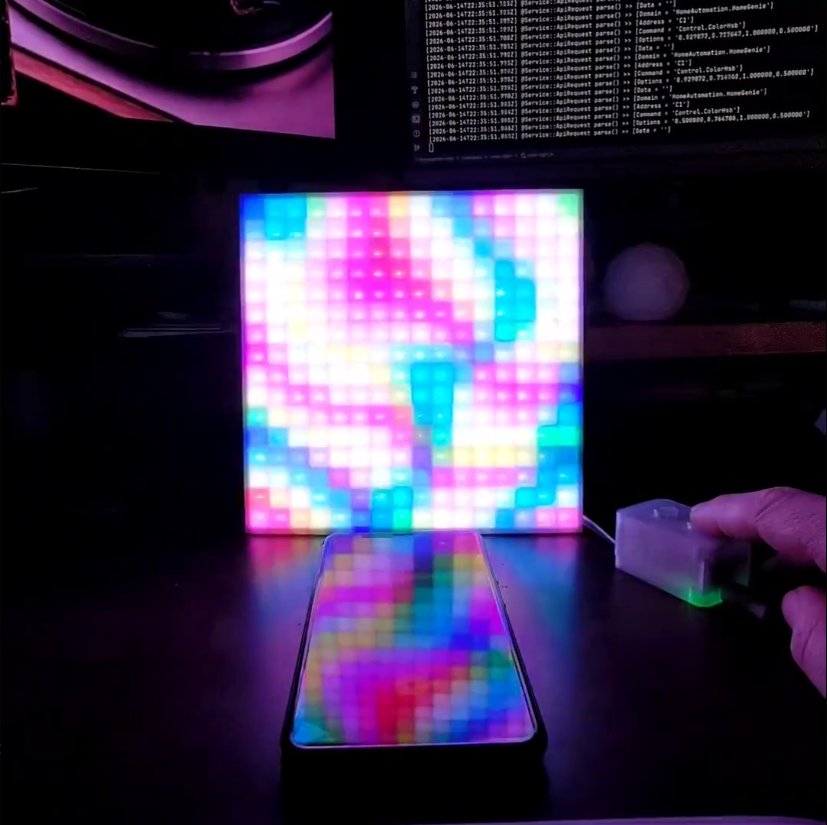

16x16 LED matrix enclosure

This project also includes a custom 3D-printed enclosure for a 16x16 LED matrix. It is specifically designed to maximize light output while minimizing dark lines between individual pixels.

The internal grid is an independent element positioned a few millimeters behind the front face, creating a subtle, natural diffusion that softens pixel boundaries and eliminates harsh grid shadows.

The enclosure consists of three parts:

Print Settings

Printing all three components takes approximately 4 hours on a Bambu Lab A1 mini using standard settings and white PLA+ filament. To achieve the exact diffusion effect shown in the videos, we recommend using the same filament brand (eSun White PLA+), as translucency can vary significantly between manufacturers.

Place the light grid into the front cover


Open media

Gently flex the LED matrix to slide it under the side tabs


Open media

Route the cables through the slots and place the back plate


Open media

Connect the LED matrix panel to the controller


Open media

Panel Assembly

Assembling the 16x16 LED matrix enclosure is quick, clean, and requires no glue. First, place the light grid inside the front diffuser cover. Next, gently flex the LED matrix so its side edges slide under the retaining tabs, resting flat against the grid while keeping any spare power wires tucked safely inside. Finally, place the back plate on top—making sure the input (DIN) and output (DOUT) cables exit through the dedicated side slots—and secure it firmly with six M2×6 screws.

Once assembled, you have a solid, lightweight display unit ready to connect directly to the Smart Light controller, or to be joined with additional panels for a wider display.

Joining Multiple Panels

To join two panels side-by-side, place the three 3D-printed brackets across the side holes and secure each bracket with two M2×8 screws (6 screws total). These are 2 mm longer than the standard screws to account for the bracket thickness.

Join two panels with the 3 brackets and 6 M2×8 screws


Open media

Smart Light with 32x16 LED Matrix Panel (Wave effect)


Open media

Power Supply & Max Power Setting

To protect your USB power supply and the controller itself, the firmware includes a configurable Max Power % limiter.

The DIY LED controller kit is physically rated for a maximum current of 3A (3 Amps). When driving a high number of pixels (up to 4096), you must reduce the "Max Power %" setting to ensure the total current draw never exceeds this 3A threshold. To utilize more power (e.g., running massive matrix panels at full white brightness), different hardware capable of handling more than 3A is required.

The 16x16 LED matrix (256 pixels) used in the demonstration examples fits perfectly within these safety limits using standard USB power supplies.

Max LED power % formula:

<power_supply_ampere> / (<number_of_pixels> * <ampere_per_pixel>) * 100 = <max_ampere_perc>

Example: With a 2A power supply and a LED strip of 144 pixels (0.04A each), the limit should be set to 35%:

2 / (144 * 0.04) * 100 = 34.7%

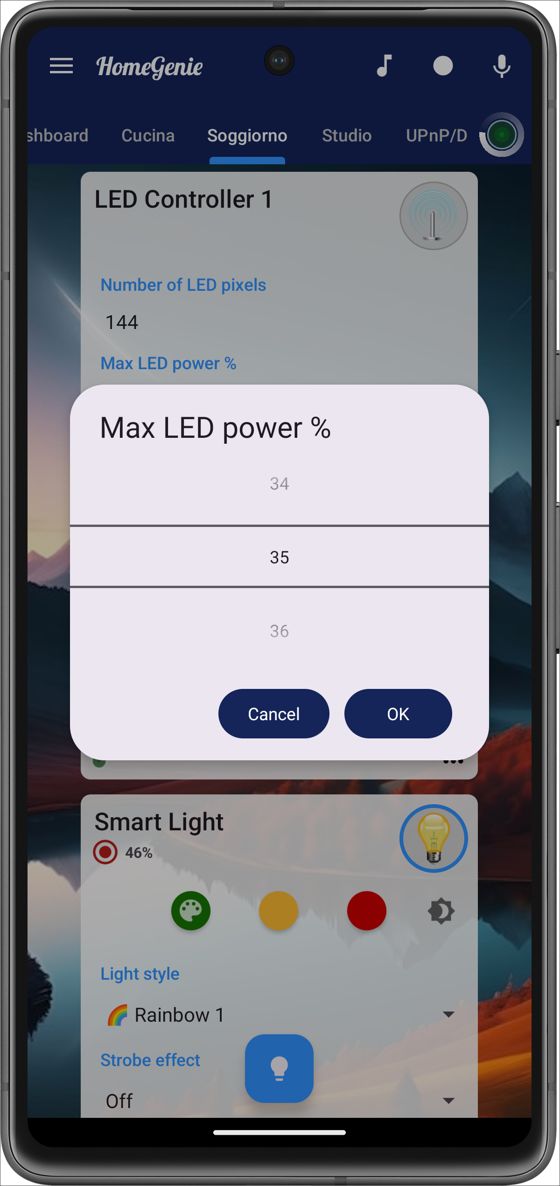

'Max power' settings

Interactive LED Matrix Emulator

You can explore the system's real-time rendering capabilities and custom scripting engine directly in your browser. Use the interactive LED Matrix Emulator below to preview procedural patterns, browse pre-built pixel art, and upload animations directly to your physical HomeGenie device.

Emulator Quick Guide

DIY: Beyond the Default Enclosures

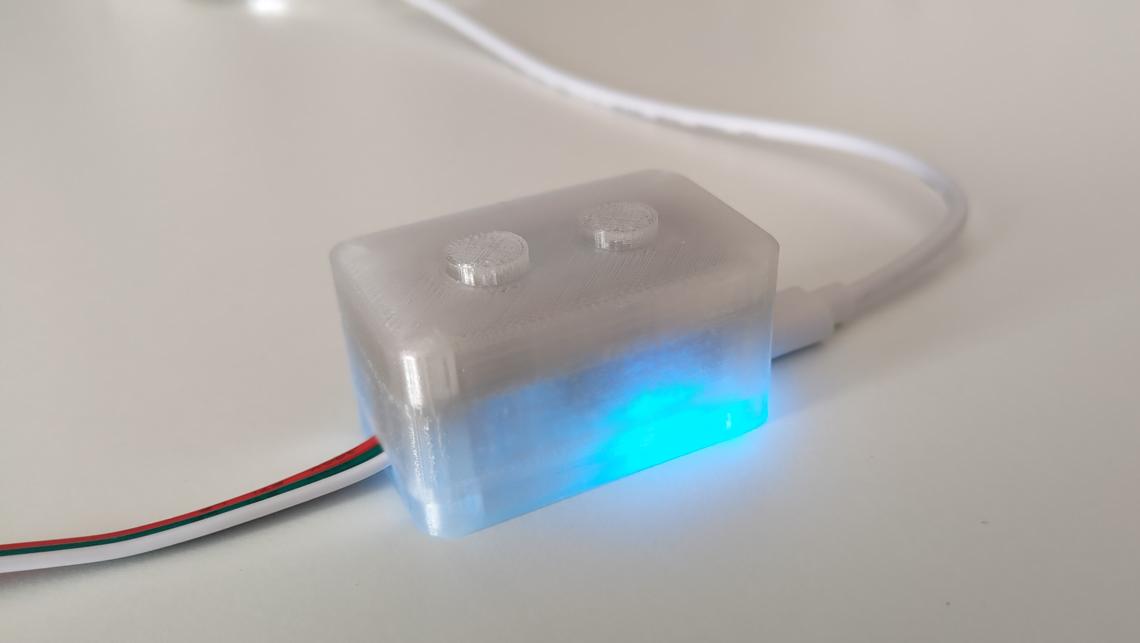

The 3D-printed controller housing and the 16x16 LED matrix frame shown above are ready-to-print, standalone designs—in fact, the controller itself already functions as a compact ambient light.

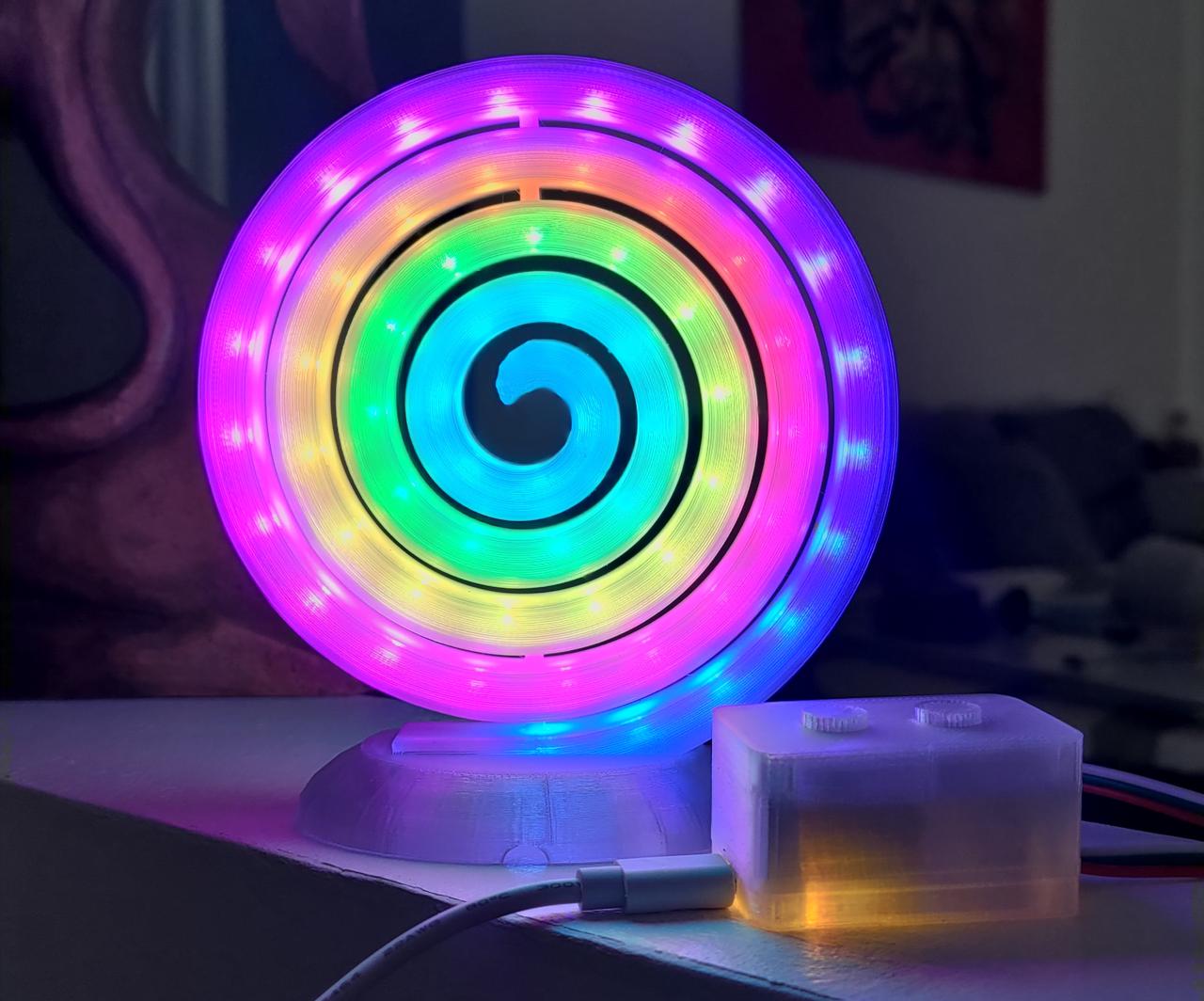

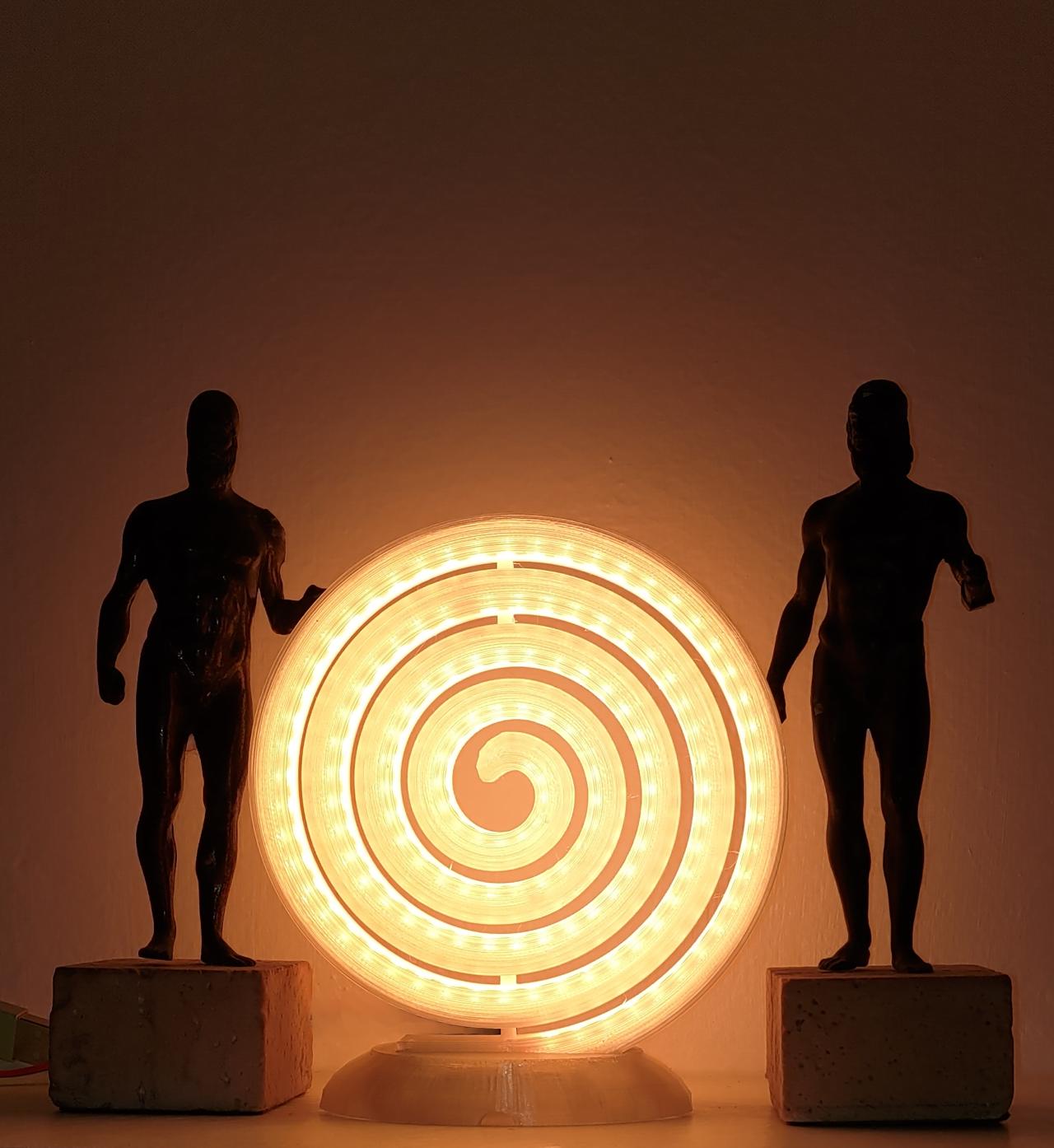

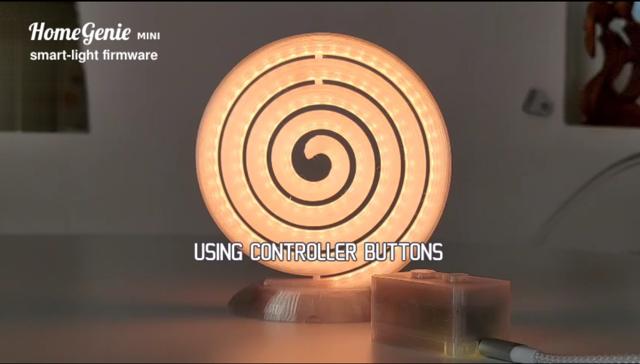

However, the real strength of HomeGenie lies in its versatility. Because it uses standard addressable LEDs, you are not limited to these default shapes: you can use the exact same controller to bring virtually any custom lamp, lit lithophane, neon-style sign, or decorative fixture to life.

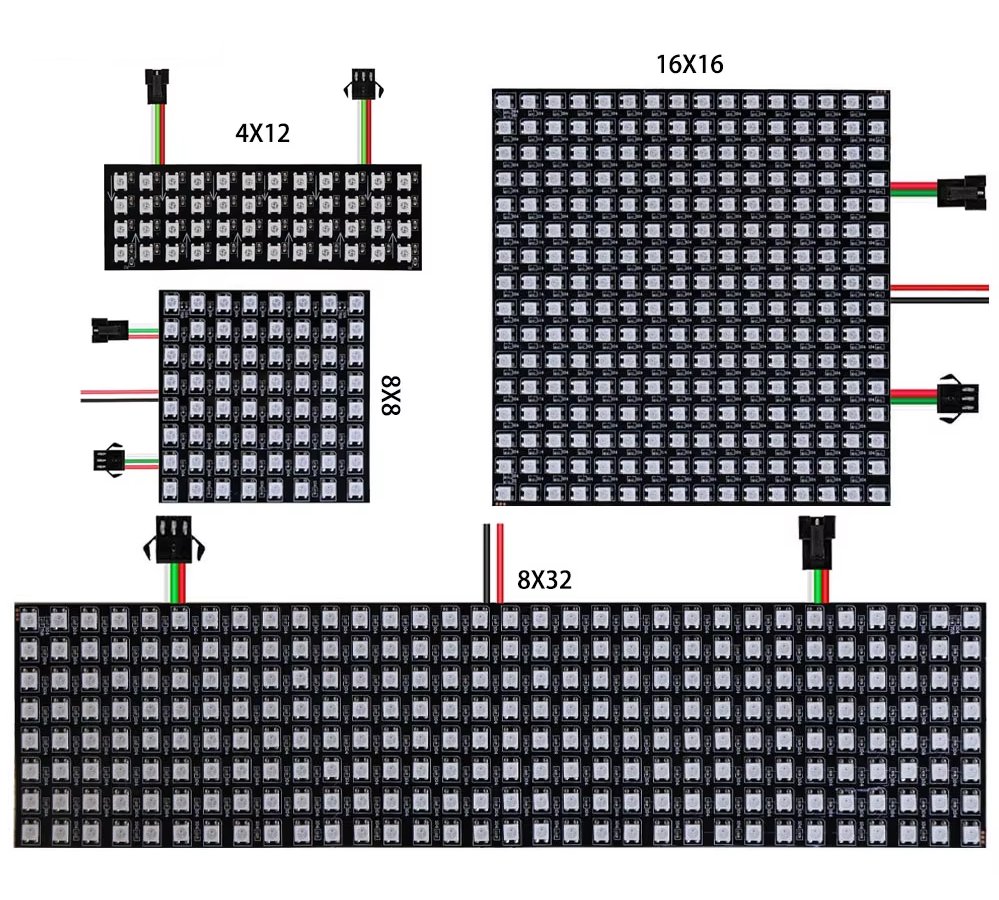

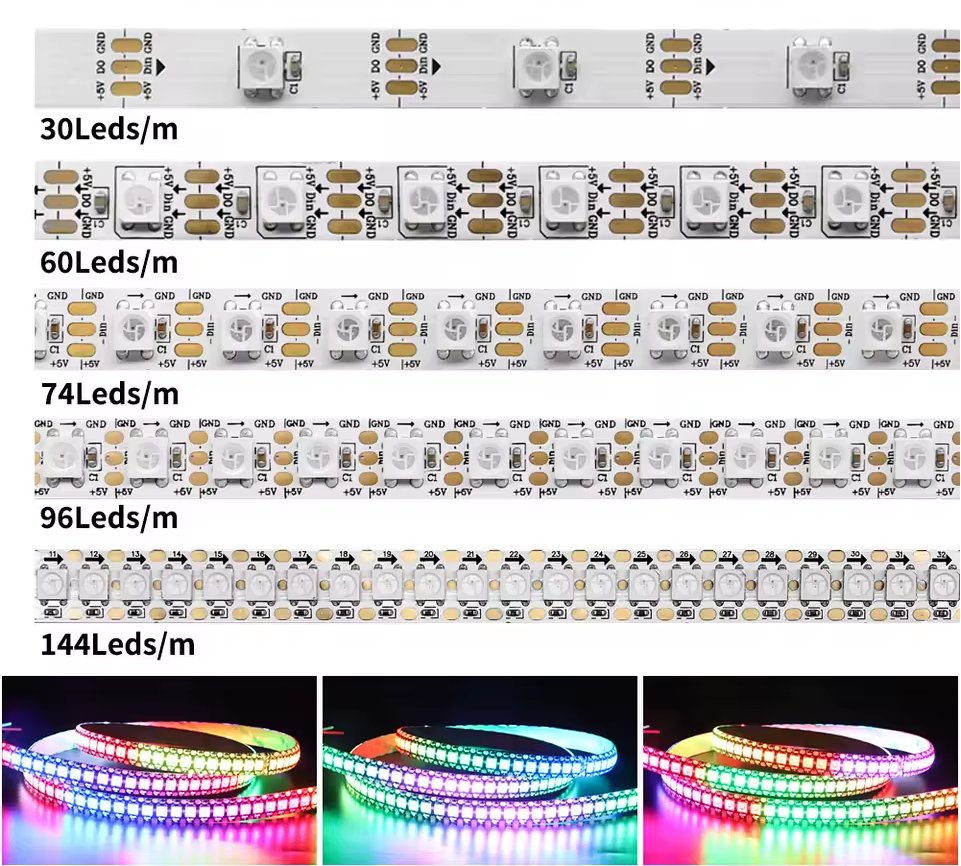

WS2812B LEDs: Selection & Sourcing

To build custom fixtures or expand your setup, the HomeGenie controller is officially tested and optimized for WS2812B (5V) addressable LEDs. These are the most common, cost-effective, and widely supported digital RGB LEDs on the market.

Recommended Form Factors

Where to Buy

WS2812B strips and matrices are readily available online and at electronics hobbyist retailers:

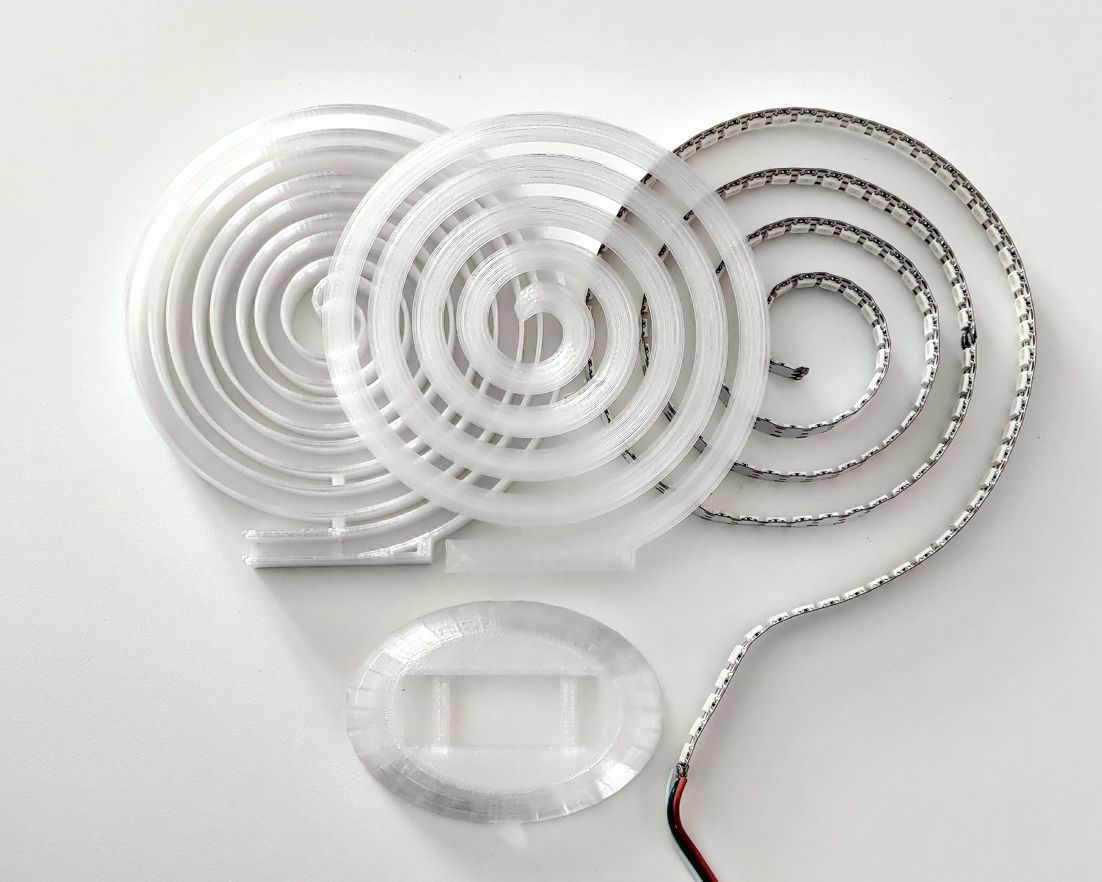

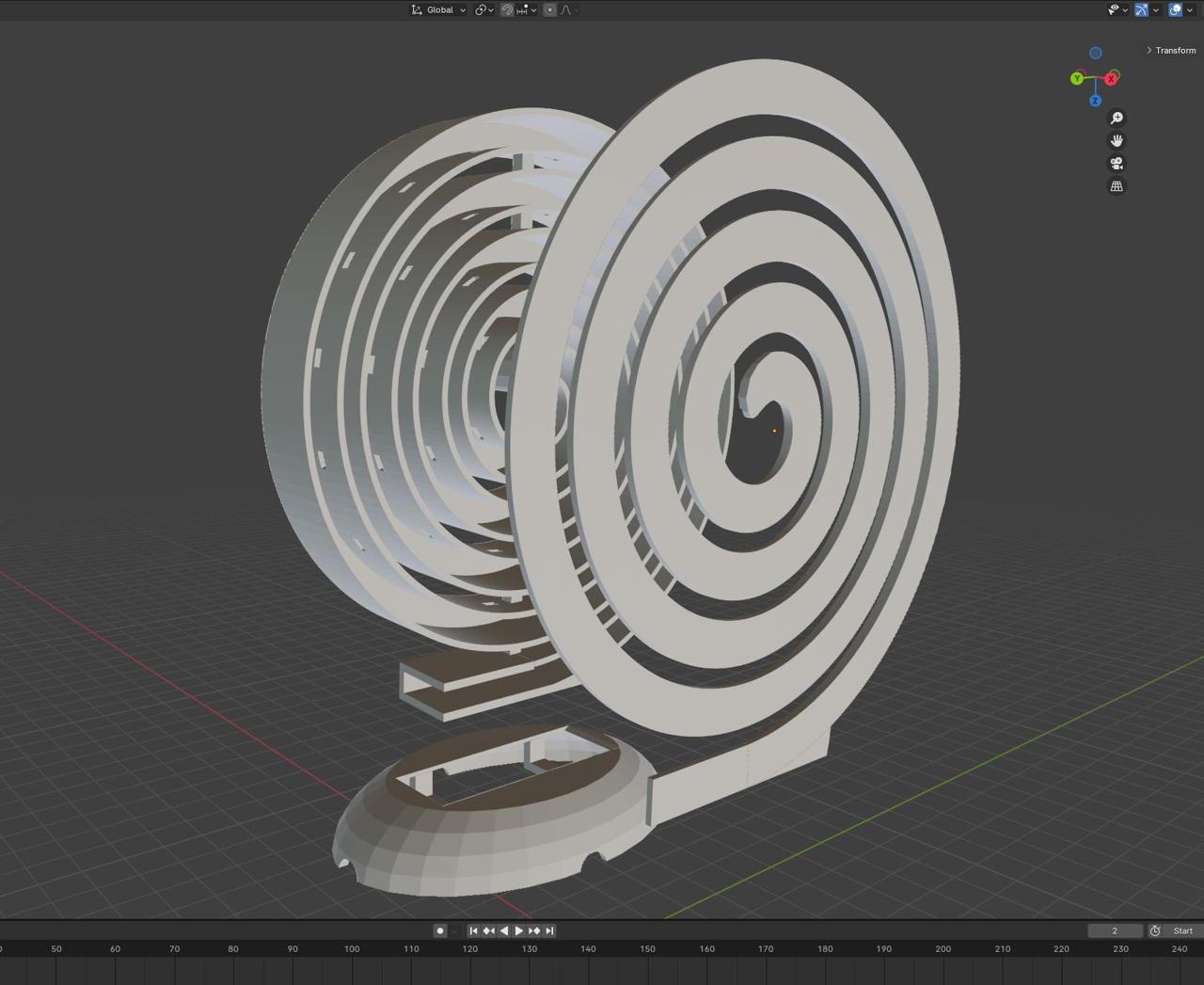

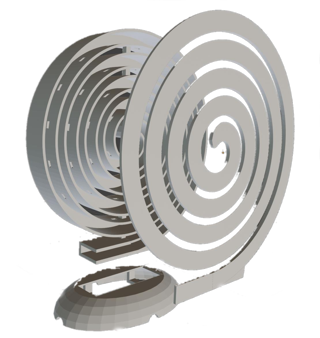

Custom 3D-Printed Lamps & Community Models

In addition to the official 3D-printable files included with this project, you can easily adapt thousands of creative community designs to work with the HomeGenie controller. A well-designed lamp body protects the electronics and diffuses the harsh, pinpoint light of individual LEDs into a soft, uniform glow.

Where to Find Ready-to-Print Models

You do not need to design every lamp from scratch. Popular 3D-printing repositories host thousands of free models designed specifically for WS2812B strips and 16x16 matrices.

Printing Tips for Best Results

Get your ESP32-S3-Zero Board

How to build HomeGenie Smart Light

Use these files to order the PCB and 3D-printed case from manufacturing services such as JLCPCB or PCBWay.

LED Controller Kit V2

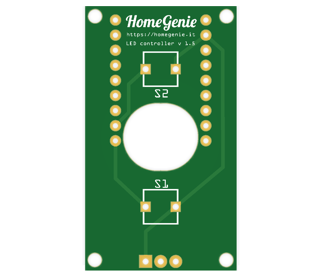

PCB PCB Gerber download REVISION 1

Controller Case Controller Case 3MF download REVISION 1

Matrix Mood Lamp

LED matrix (16x16) 16x16 LED matrix casing 3MF REVISION 1

Smart Light project files by G-Labs licensed under CC BY-NC 4.0


Firmware Configuration Parameters

Before uploading the firmware, set the configuration fields to match your hardware:

1. LED Strip or Matrix

2. Auxiliary LED (Optional)

If you installed the optional RGB module onto the controller shield:

Create this device now! 🪄

You can flash the pre-compiled firmware directly to your connected ESP board using the tool below. Select the appropriate target model (e.g., ESP32-C3 or ESP32-S3) and click Create device.

Connect your ESP32/ESP8266 microcontroller to your computer via USB, select your firmware version, and click "Create device" to upload the HomeGenie Mini firmware.

1. Select device type

2. Select firmware flavor

VERSION

3. Let the magic happen!

Installing firmware directly from this page works only in browsers with Web Serial API enabled.

⚠️ Having trouble uploading the firmware?

First, ensure that you do not have multiple ESP devices connected to your USB ports. Please connect only one device at a time.

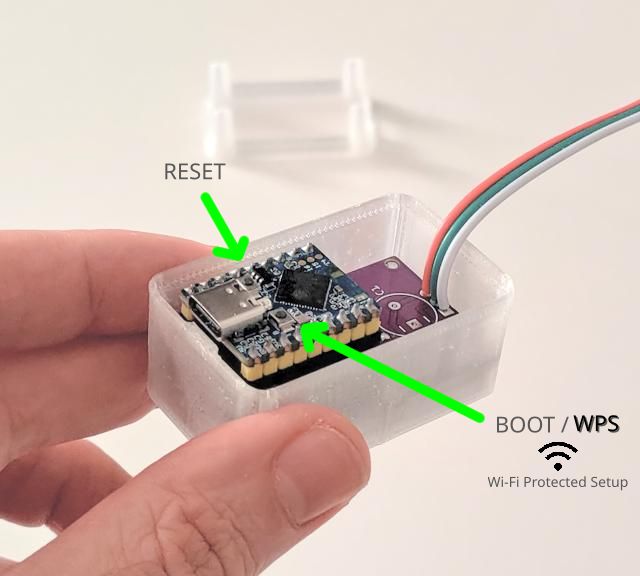

If only one device is connected and the firmware uploader still fails to connect (or gets stuck at "Connecting..."), your device might need to be put into Boot Mode manually. (This is often required with development boards such as the classic ESP32-CAM).

START THIS PROCEDURE AFTER THE PORT SELECTION WINDOW APPEARS.
  1. Unplug the device from the USB port.
  2. Press and hold the RST and IO0 buttons.
  3. Plug the device back into the USB port (while still pressing the buttons).
  4. Release the buttons, then select the serial port from the list and confirm the upload.

Automation Examples

Every HomeGenie Mini device includes a built-in Scheduler capable of executing lightweight JavaScript code for customized automation.

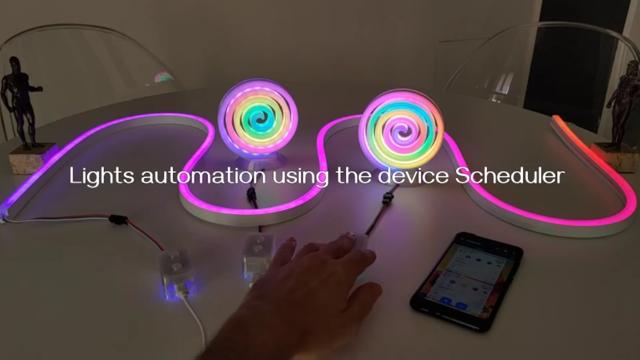

Linked Lights (Zero-Code and Scripted)

You can link multiple devices to control them as a group. For example, adjusting the brightness of a "Main Light" can automatically synchronize the brightness of a "Floor Lamp" and a "Ceiling Light".

In the video below, we demonstrate a simple, zero-code group linking using two preset scheduler tasks.

Alternatively, you can implement a highly optimized, single-task solution using a custom JavaScript action. The script triggers whenever the master light's brightness changes:

$$.boundModules.level = event.value

The bound devices (boundModules) will automatically copy the master's active level (event.value) in real-time.

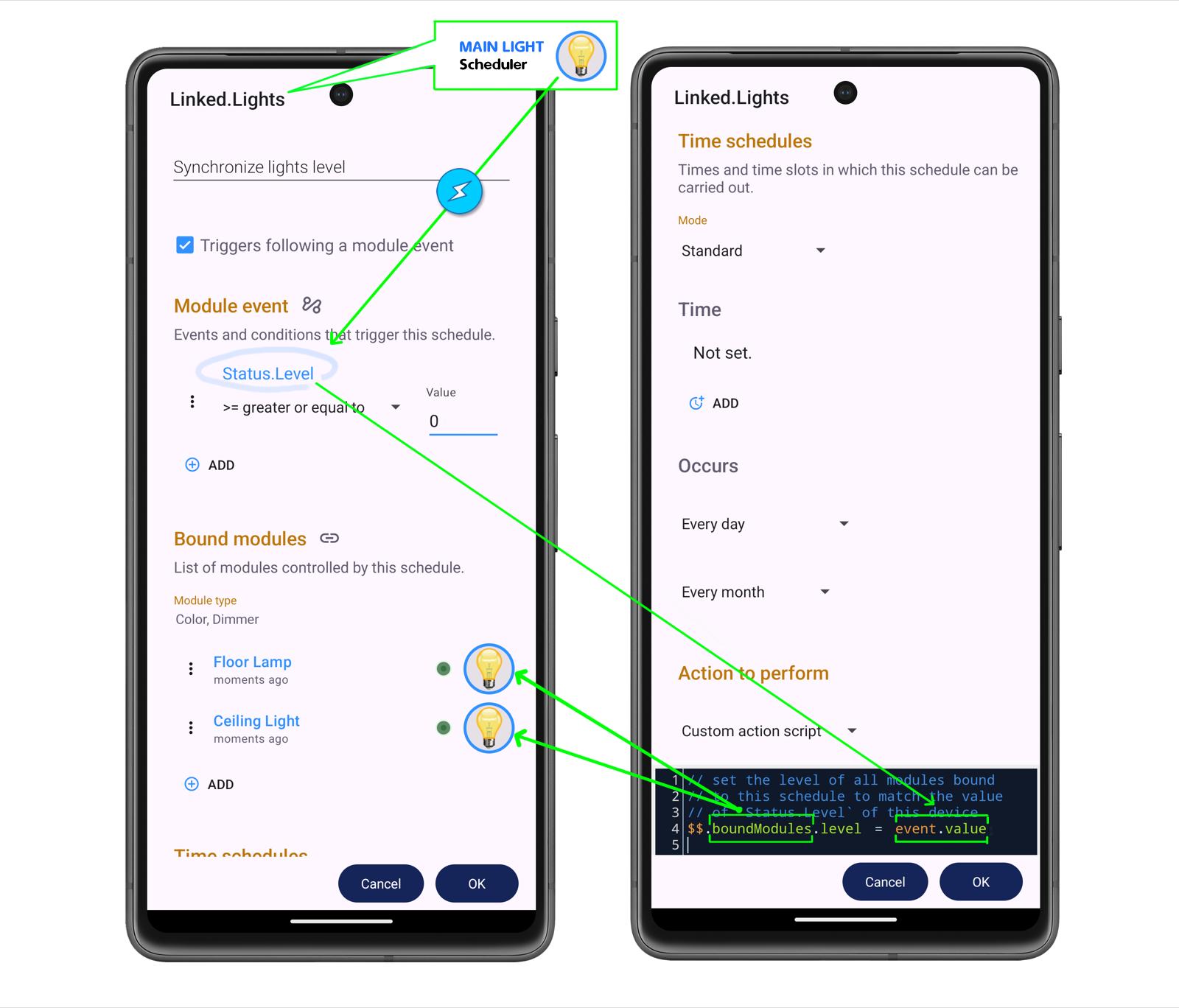

Linked Lights schedule

Module event trigger and action to perform


Open media

Source Code

The complete source code and individual effect headers are available on GitHub:

folder_open color-light


Modules and API

In addition to the common Device API, the following modules and API endpoints are implemented by the color-light firmware.

C1 Module (Master Controller)

This is the master module that controls all primary LED strip or matrix pixels simultaneously.

Domain / Address

HomeAutomation.HomeGenie/C1

Properties

Commands

C2 Module (Auxiliary Controller LED)

Controls the optional secondary RGB indicator on the controller board.

Domain / Address

HomeAutomation.HomeGenie/C2

Commands

Properties & Parameters

Parameter NameDescription
Status.LevelCurrent brightness level of the auxiliary LED (0.0 to 1.0)
Status.ColorHsbCurrent color of the auxiliary LED in HSV format
LED.modeOperational mode: status (diagnostic mirror) or independent

Behavioral note: In status mode, the auxiliary LED mirrors primary animations and network status without triggering continuous module events. In independent mode, the C2 module accepts distinct color and level controls independently of the main LED strip.

L1 ... L<num> Modules (Individual Pixels)

These modules control a single, specific LED corresponding to the index number <num>.

Domain / Address

HomeAutomation.HomeGenie/L<num>

Properties

Commands

Automation Module (Compiled Script Engine)

This module manages the non-blocking execution of the compiled binary bytecode scripting engine.

Domain / Address

HomeAutomation.HomeGenie/Automation

Commands
